ABOUT THE WX10

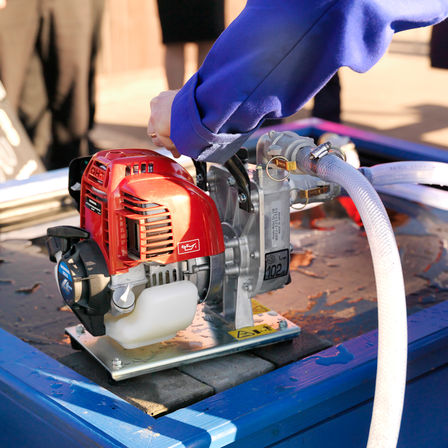

Despite its compact size and weighing just 6.1kg, this superb general purpose pump can move 140 litres of fresh water per minute for drainage, irrigation and general water transfer just about wherever you need to work. The WX10 also generates an impressive 3.5 bars of pressure for washing down equipment, plus up to 8 metres suction head lift making it widely used for draining flooded inspection chambers and cellars or transferring water from a bowser.

The easy-starting and super-efficient mini 4-stroke engine conforms to the latest emission regulations as well as providing superb reliability. A unique 360 lubrication system also enables the pump to operate at virtually any incline without spilling oil or risk of engine damage, as well as ensuring trouble-free operation after transporting and storage. Quite simply, the WX10 is the handiest pump you can lay your hands on.

SPECIFICATION

Maximum Discharge Capacity(L/min) | 120
Inlet/Outlet diameter mm/inches-Thread Type | 25/0.1-PF
Maximum Total Head (m) | 37
Maximum Suction Head (m) | 8.0
Pressure(bars) | 3.7
Debris Size Capacity(mm) | 5.7
Engine Model | GX25
Engine Type | 4-Stroke, OHC, 1 Cylinder
Displacement(cm3) | 25
Bore x Stroke (mm) | 35.0 x 26.0
Engine Speed (rpm) | 7,000 max
Engine Net Power(kW) (SAE J1349) | 0.72
Cooling System | Forced Air
Ignition System | Transistor
Oil Capacity(L) | 0.08
Fuel Tank Capacity(L) | 0.53
Operating Time at maximum discharge | 54m
Starter System | Recoil
Length(mm) | 340
Width(mm) | 220
Length(mm) | 295
Dry Weight(kg) | 6.1
Sound Pressure Level at operators ears-dB(A) | 87
Guaranteed Sound Power Level-dB(A) | 100
